FULLY-AUTO BELT-DRIVE TT,BLACK/BRONZE

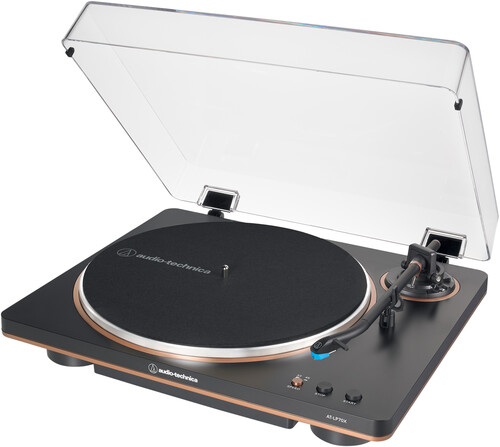

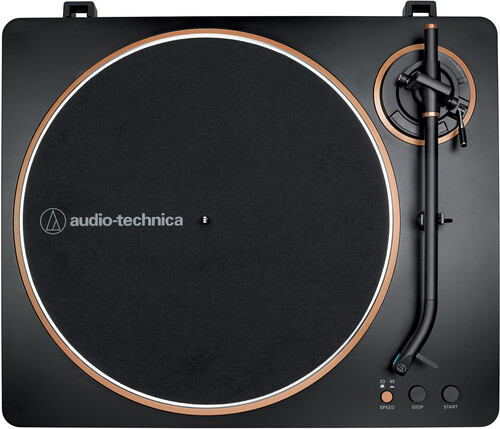

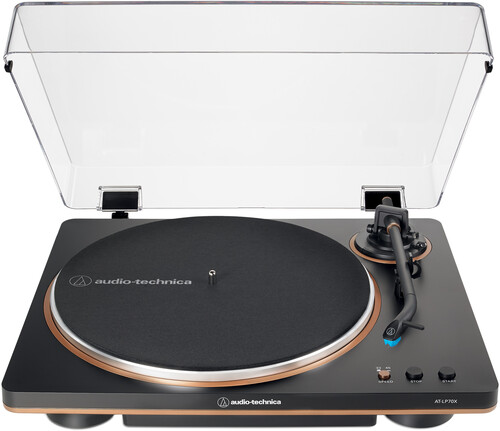

The AT-LP70X fully automatic belt-drive turntable is designed for budding vinylphiles – those who love the engaged, real-world experience of listening to records, from flipping through albums at the record store, to placing a record on the turntable, cueing the tonearm, and sitting back with the album art in hand to enjoy warm, analog music as the artist intended.

Arguably, the most important component for generating high-fidelity audio from vinyl is a quality phono cartridge. Audio-Technica has been a leader in phono cartridge design for more than 60 years, and we’ve drawn on that expertise to create a versatile, high-performance cartridge for this turntable – performance that other turntables in this class simply can’t match.

Integrated into the J-shaped tonearm, the AT-VM95C cartridge with 0.6 conical stylus offers excellent channel separation and low distortion for outstanding tonal quality. And the stylus can also be easily upgraded with any of the other styli (elliptical, microlinear, or Shibata) in our VM95 Series, offering customization that is normally only possible on a turntable with a detachable headshell and cartridge.

The easy-to-use AT-LP70X plays both 33-1/3 and 45 RPM records and, with its built-in switchable phono preamp, can be connected directly to a home stereo, powered speakers, computer and other components, whether they have a dedicated phono input or not. The three-piece, anti-resonance chassis provides a solid foundation that dampens unwanted noise for improved sound quality. Noise is further reduced by the inclusion of an AC adapter that moves the AC/DC conversion outside of the chassis to limit its impact on the signal chain.

The turntable comes with a detachable RCA output cable (dual RCA male to dual RCA male with ground), 45 RPM adapter, and removable hinged dust cover, and is available in three color schemes: Black/Gray, Black/Bronze, and White/Silver.

Features:

• Fully automatic belt-drive turntable operation with two speeds: 33-1/3, 45 RPM
• A fixed-body AT-VM95C Integral Dual Moving Magnet™ phono cartridge is compatible with any VM95 Series replacement stylus, offering a wide choice of options for every budget and application
• Stylish three-piece chassis construction dampens resonance for improved sound quality*
• J-shaped tonearm is engineered to minimize tracking errors
• Tonearm lock reduces risk of stylus damage

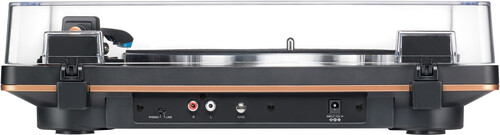

• Built-in switchable phono/line pre-amplifier
• Anti-resonance, die-cast aluminum platter with felt mat
• AC adapter handles AC/DC conversion outside of the chassis, reducing noise in the signal chain
• Includes detachable RCA output cable (dual RCA male to dual RCA male with ground), 45 RPM adapter, and removable hinged dust cover
• Available in Black/Gray, Black/Bronze, and White/Silver

*Compared to AT-LP60X.

Specifications:

Turntable specifications:

• Motor: DC motor
• Drive method: Belt drive
• Speed: 33-1/3 RPM, 45 RPM
• Turntable platter: Die-cast aluminum
• Wow and flutter: < 0.25% (WTD)
• Signal-to-noise ratio: > 55 dB
• Output level: PHONO: 4.0 mV nominal at 1 kHz, 5 cm/sec LINE: 252 mV nominal at 1 kHz, 5 cm/sec
• Phono pre-amp gain: 36 dB nominal, RIAA equalized

Tonearm specifications:

• Effective length: 220 mm (8.7”)
• Overhang: 18 mm (0.71”)
• Maximum tracking error angle: Less than 2.0°

Cartridge specifications:

(This product is equipped with an integrated AT-VM95C Dual Moving Magnet Stereo Cartridge. The cartridge cannot be removed.)

• Cartridge model: AT-VM95C
• Cartridge type: VM
• Recommended load impedance: 47,000 ohms
• Output voltage: 4.0 mV (mV at 1 kHz, 5 cm/sec)
• Stylus: 0.6 mil bonded conical
• Cantilever: Aluminum pipe

AC adapter:

• Type: FJ-SW1261200500DN
• Rated input voltage: 100 to 240 V AC
• Rated input current: 0.4 A max.
• Rated frequency: 50 Hz / 60 Hz
• Rated output voltage: 12 V DC
• Rated secondary current: 0.5 A
• Cable length: Approx. 1.5 m (4.9')

(The included AC adapter may differ depending on the country of sale. Check the rating label on the AC adapter. For details, contact your local Audio-Technica dealer.)

General specifications:

• Dimensions: 400 mm (16”) × 330 mm (13”) × 110 mm (4.3”) (W × D × H)
• Weight: Approx. 2.9 kg (6.4 lbs)
• Power consumption: 1.5 W
• Replacement stylus (sold separately): AT-VMN95C
• Replacement belt (sold separately): AT-LP70X exclusive belt

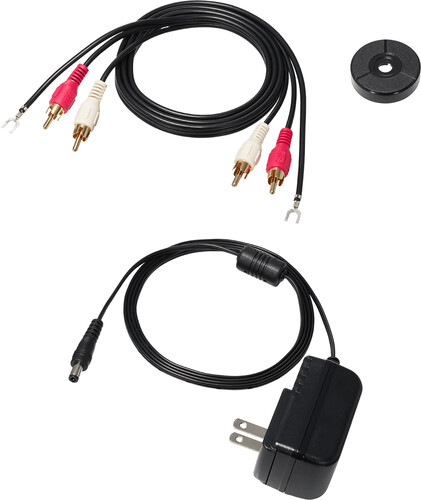

Accessories:

• Dust cover
• Felt mat
• Platter (with drive belt)
• Dust cover hinges
• 45 RPM adapter
• RCA audio cable (Approx. 1.0 m (3.3'))
• AC adapter (Approx. 1.5 m (4.9'))
